Simplified Analytical Modeling of Reflected Wave Transients in Cable-Connected VSI-Based Motor Drives With Output Reactor

Abdul Basit Mirza, Sama Salehi Vala, Kushan Choksi and Fang Luo
IEEE Transactions on Power Electronics, 2024
Read Here

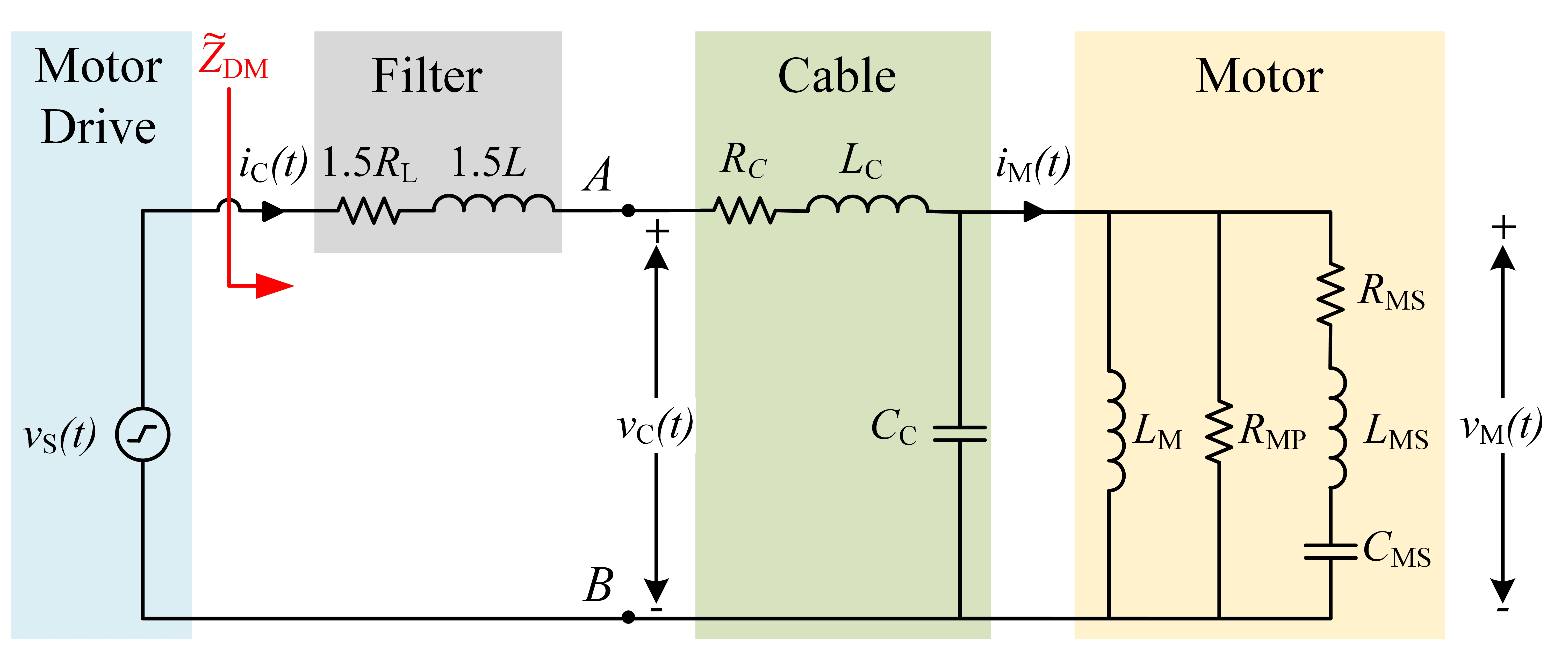

Abstract: This letter proposes a simplified lumped analytical model to investigate reflected wave phenomenon (RWP) in a two-level voltage source inverter-based motor drive with an output reactor. RWP causes motor side overvoltage and drive side overcurrent. The output reactor at the drive side is a preferred RWP mitigation approach for its simplicity. However, existing RWP modeling approaches, for reactor design purposes, rely on complex cable and motor circuit models, requiring time-consuming simulations or are oversimplified, neglecting motor impedance and drive's output slew rate dv/dt . To address this, the proposed model incorporates a condensed motor model and a ramp edge source for the drive output. It is solved to obtain closed-form expressions for estimating the slew rate of overvoltage and overcurrent transients and their respective peak values. Finally, the derived expressions are validated through double pulse tests on a silicon carbide-based hardware prototype for different cable lengths and reactor values.

Recommended citation (BibTex):

@ARTICLE{MirzaRWP2024,
 author={Mirza, Abdul Basit and Vala, Sama Salehi and Choksi, Kushan and Luo, Fang},
 journal={IEEE Transactions on Power Electronics},
 title={Simplified Analytical Modeling of Reflected Wave Transients in Cable-Connected VSI-Based Motor Drives With Output Reactor},
 year={2024},
 volume={39},
 number={10},
 pages={11986-11990},
 doi={10.1109/TPEL.2024.3422324}
}
